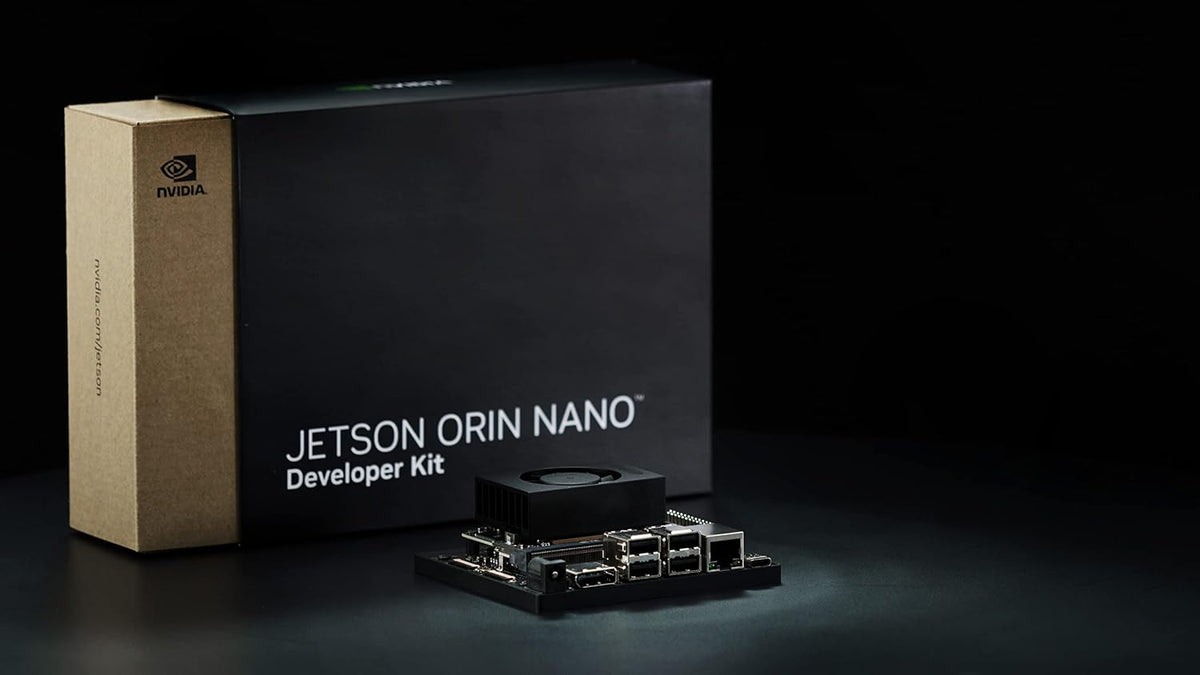

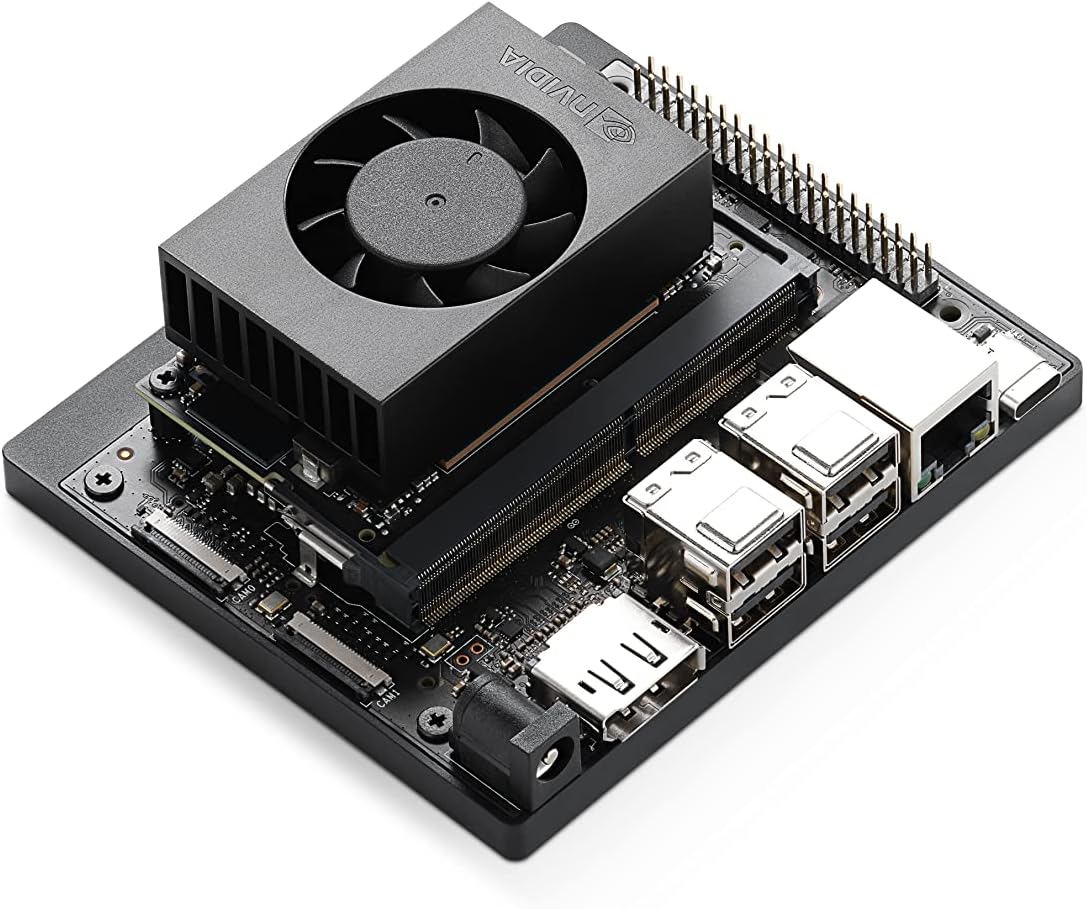

NVIDIA Jetson Orin Nano SUPER Development Kit

Product Overview

The NVIDIA Jetson Orin Nano SUPER Developer Kit is a high-performance, cost-effective edge AI computing solution, purpose-built for robotics developers, AI researchers, students, and embedded engineers — designed to eliminate the tedious tasks of component sourcing, system installation, and hardware configuration in edge AI and robotics development projects. The kit features the Jetson Orin Nano SUPER module with AI performance of up to 67 TOPS (8GB) — 134× faster than the original Jetson Nano — capable of smoothly running generative AI models, vision transformers, large language models, and vision-language models, making it ideal for modern AI and robotics development.

Features

• Excellent AI Performance for production

  Low power and low latency with up to 67 TOPS AI performance, featuring an Ampere architecture GPU and a 6-core ARM CPU, which enables multiple concurrent AI application pipelines and high-performance inference.

• Compact edge AI device

  Compact size at 100mm × 79mm × 21mm, includes Jetson Orin™ Nano 8GB module, a heatsink with a fan and a power adapter.

• Expandable with rich I/Os

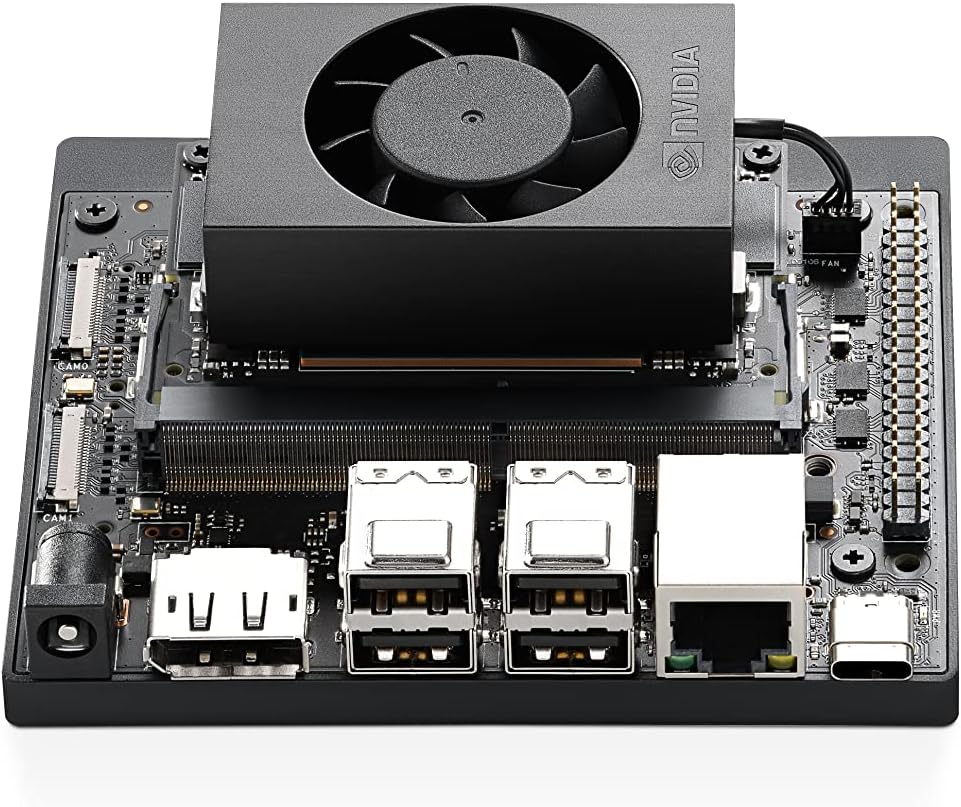

  4x USB 3.2 Gen 2 ports, DP 1.2, M.2 key E (Wi-Fi module included), 2x M.2 Key M for SSD, microSD slot, 2x MIPI CSI-2 connectors, Gigabit Ethernet, 40-pin GPIO.

Application

• NVIDIA AI software stack

  The NVIDIA AI software stack is designed to accelerate AI application and deployment.



• Jetson Platform Services

  Leverage Jetson Platform Services that provides platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.

• Jetson AI Lab for Generative AI and Computer Vision Models deployment

  Go to Jetson AI lab for one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8; and others.

Hardware Overview

Technical Specifications

Parts List
