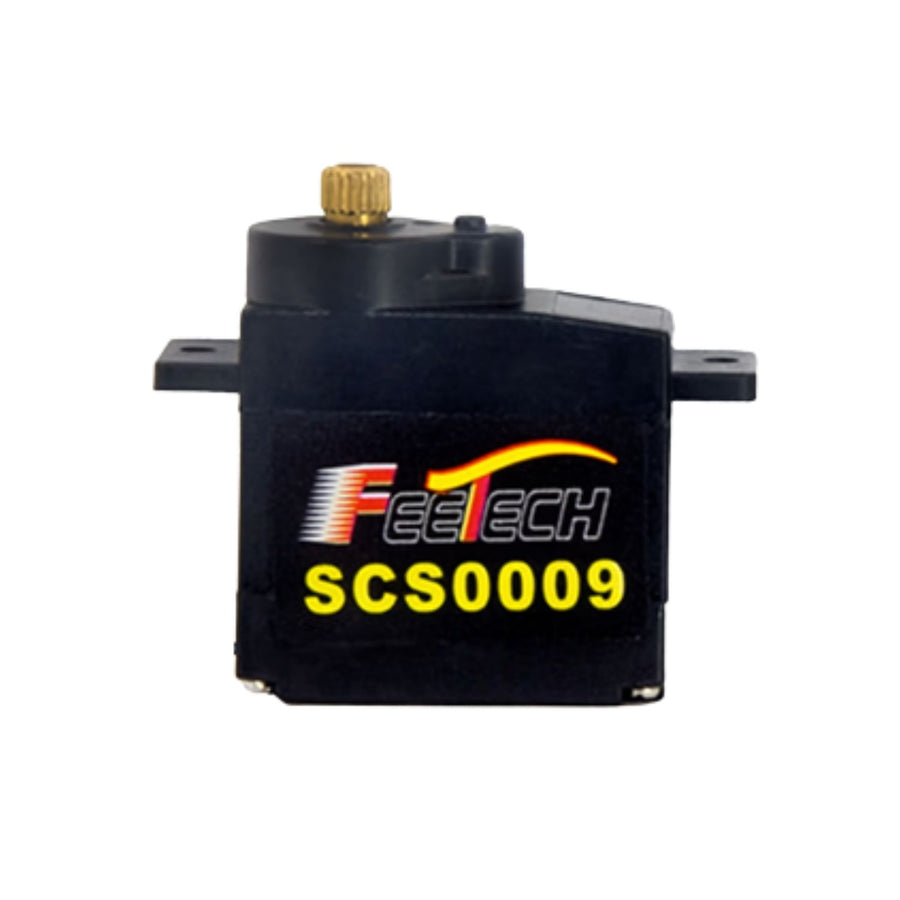

FEETECH SCS0009 Serial Bus Servo

FEETECH SCS0009 Serial Bus Servo

Product Overview

This FEETECH SCS0009 serial bus servo is a robotic actuator adapted for AmazingHand dexterous hands. It features full-dimensional real-time feedback, metal gear transmission, 10-bit encoder, and standard TTL serial bus communication, with multiple intelligent protection mechanisms built-in.

Key Advantages

• Native Compatibility with Amazing Hand Dexterous Hands

  Perfectly adapted to Amazing Hand dexterous hands, works out of the box after simple configuration, saves development time for robotic project integration.

• Ultra-Compact Size

  Suitable for robotics applications that requires compact footprint, such as microrobot joints and dexterous hands.

• Full-Dimensional Real-Time Feedback

  Provides real-time feedback of position, speed, voltage, current, temperature, and load.

• Metal Gearbox

  Includes 1:416 gear reduction ratio metal gearbox.

• 10-bit encoder

  Provides 1024-step resolution for precise closed-loop control.

• Standard TTL Serial Bus Communication

  Communicates through serial connection that can be daisy-chained with a single 3-pin wire.
