Product Overview

The NVIDIA Jetson Orin Nano SUPER Developer Kit is a high-performance, cost-effective edge AI computing solution, purpose-built for robotics developers, AI researchers, students, and embedded engineers — designed to eliminate the tedious tasks of component sourcing, system installation, and hardware configuration in edge AI and robotics development projects. The kit features the Jetson Orin Nano SUPER module with AI performance of up to 67 TOPS (8GB) — 134× faster than the original Jetson Nano — capable of smoothly running generative AI models, vision transformers, large language models, and vision-language models, making it ideal for modern AI and robotics development.

Features

Excellent AI Performance for production

Low power and low latency with up to 67 TOPS AI performance, featuring an Ampere architecture GPU and a 6-core ARM CPU, which enables multiple concurrent AI application pipelines and high-performance inference.
Compact edge AI device

Compact size at 100mm × 79mm × 21mm, includes Jetson Orin™ Nano 8GB module, a heatsink with a fan and a power adapter.
Expandable with rich I/Os

4x USB 3.2 Gen 2 ports, DP 1.2, M.2 key E (Wi-Fi module included), 2x M.2 Key M for SSD, microSD slot, 2x MIPI CSI-2 connectors, Gigabit Ethernet, 40-pin GPIO.

Application

NVIDIA AI software stack

The NVIDIA AI software stack is designed to accelerate AI application and deployment.
Jetson Platform Services

Leverage Jetson Platform Services that provides platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.
Jetson AI Lab for Generative AI and Computer Vision Models deployment

Go to Jetson AI lab for one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8; and others.

Hardware Overview

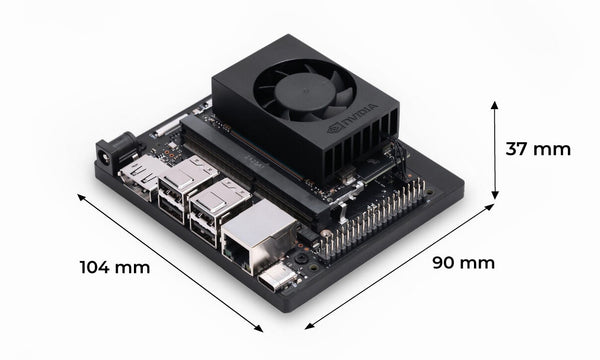

NVIDIA Jetson Orin Nano SUPER Dev Kit — gallery image 4

Core SKU Versions:

Version	AI Performance	Memory Bandwidth	Use Case
8GB Jetson Orin Nano SUPER	67 TOPS	102 GB/s	Advanced AI development, generative AI deployment, high-performance robotics projects

Technical Specifications

Category	Specification
Core Module	NVIDIA Jetson Orin Nano SUPER
AI Performance	67 TOPS
CPU	6-core ARM Cortex-A78AE @ 1.7GHz
GPU	NVIDIA Ampere architecture, 1024 CUDA cores + 32 Tensor cores
Memory	8GB LPDDR5
Wireless Connectivity	2.4G/5G Dual-Band WiFi 5 + Bluetooth 5.0, 4dBi high-gain dual antennas
Cooling System	PWM-controlled ball bearing fan (50,000-hour lifespan) + aluminum heatsink
Display Output	DP 1.2, up to 4K@60Hz (H.265)
USB Ports	4× USB 3.2 Gen 2, 1× USB Type-C
Expansion Interface	40-pin GPIO header (UART/SPI/I2C/I2S/GPIO), 12-pin button header
Power Supply	19V DC power adapter
Dimensions	100mm × 79mm × 21mm
Warranty	1-year warranty for development use only

Parts List

NVIDIA Jetson Orin™ Nano Super Developer Kit	x1
19V Power Adapter	x1
Type B (US, JP, CA, PH) Power Cable	x1
microSD card 64GB	x1
M.2 WiFi module	x1

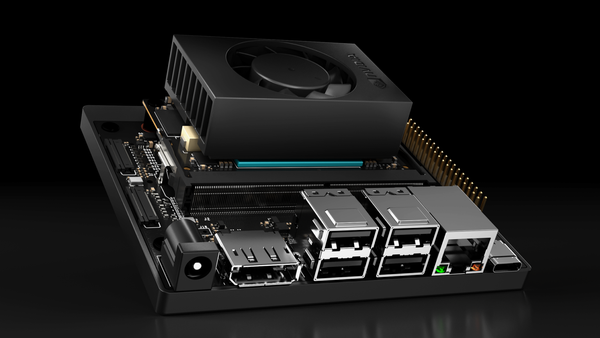

NVIDIA Jetson Orin Nano SUPER Development Kit
