NVIDIA Jetson Orin NX SUPER Development Kit
Edge Computing

NVIDIA Jetson Orin NX SUPER Development Kit

NVIDIA Jetson Orin NX SUPER module for industrial-grade AI computing. Up to 157 TOPS, multi-camera support. Ready for autonomous robotics.

WikiBuy this product
AI Compute157 TOPS
GPUAmpere 1024 CUDA + 32 Tensor + 2 NVDLA
Memory16GB LPDDR5
Camera Support2x CSI (GMSL)
CompatibilityROS 2, Isaac ROS, Isaac Sim, DeepStream

Product Overview

The NVIDIA Jetson Orin NX SUPER Development Kit is a high-performance edge AI computing platform, purpose-built for advanced robotics developers, generative AI researchers, and embedded system engineers — designed to eliminate the complexity of hardware integration, system configuration, and storage expansion in high-demand edge AI and embodied intelligence projects. It features the Jetson Orin NX SUPER module, delivering up to 117 TOPS (8GB) / 157 TOPS (16GB) of AI performance — 234×/314× faster than the original Jetson Nano — and comes pre-configured with a 256GB NVMe PCIe 3.0 SSD, 2.4G/5G dual-band WiFi + Bluetooth 5.0, a long-life PWM cooling fan, an acrylic enclosure, and Ubuntu 22.04 pre-installed, ready to develop out of the box. We offer multiple customized kits, including an OLED display, audio card, and SO-ARM100/101 robotic vision kits, making it the ideal platform for large language model edge deployment, advanced computer vision, and high-performance LeRobot SO-ARM robotic development.

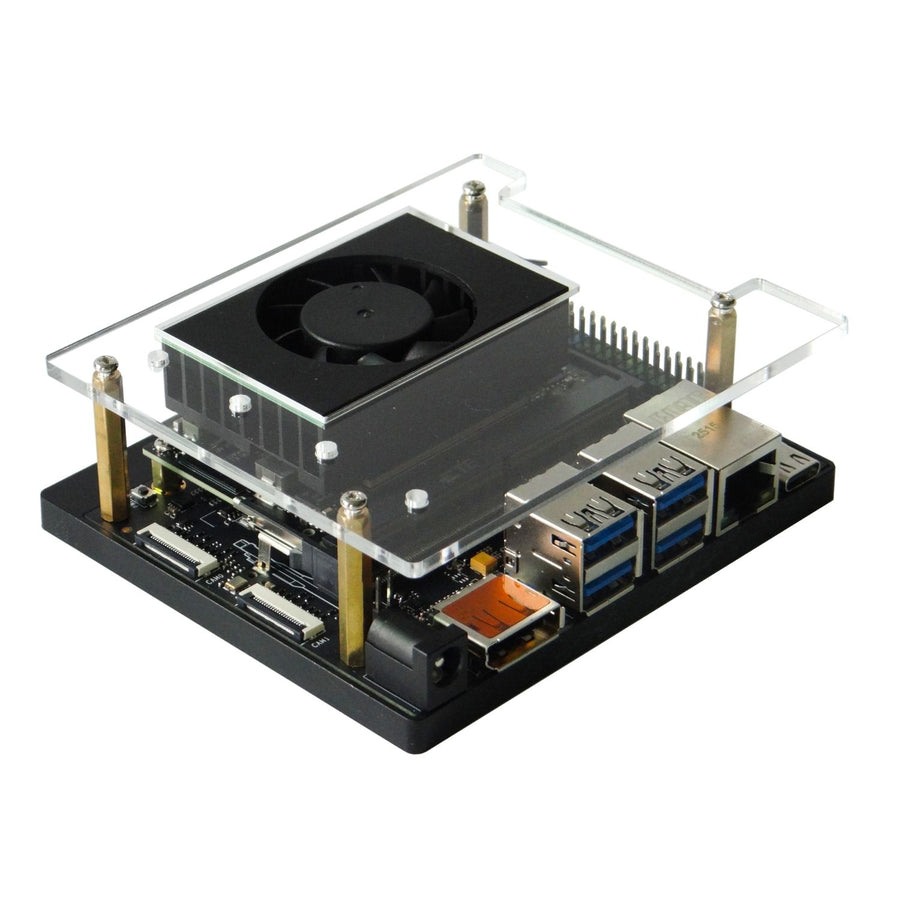

NVIDIA Jetson Orin NX SUPER Development Kit Product Display

Key Advantages

  • Industry-Leading Edge AI Performance

    The 8GB version delivers 117 TOPS of AI performance, while the 16GB version delivers 157 TOPS — 1.7× faster than the standard Orin NX — capable of smoothly running large language models, vision-language models, and complex Transformer models, meeting the most demanding generative AI and robotics development needs.

  • Pre-Configured, Ready Out of the Box

    Equipped with a 256GB NVMe PCIe 3.0 x4 SSD (read speeds up to 2800MB/s) and pre-installed with the official Ubuntu 22.04 system — no need to purchase storage or install the OS separately, saving hours of configuration time. Power on and start developing immediately.

  • Robust Cooling & Connectivity

    Pre-installed M.2 dual-band WiFi 5 + Bluetooth 5.0 module with 4dBi high-gain antennas ensures stable long-range wireless connectivity; integrated PWM-controlled ball bearing fan (50,000-hour lifespan, 10× more durable than hydraulic fans) ensures stable performance with low noise even under 40W full load.

  • Robotics-Friendly Expansion Design

    The acrylic enclosure features pre-drilled camera bracket mounting holes, supporting dual camera installation. Abundant I/O includes 4× USB 3.2, DP 4K60Hz output, and 40-pin GPIO header, fully compatible with SO-ARM100/101 robotic arms and LeRobot project accessories.

  • Flexible Customization Options

    Over 12 specialized kits are available, including the Standard Kit, OLED Display Kit, USB Audio Kit, CSI/USB Camera Kit, and SO-ARM100/101 dedicated robotic vision kits — perfectly matched to different development needs, avoiding unnecessary duplicate purchases.

Hardware Overview

Jetson Orin NX Development Kit Hardware Structure

Jetson Orin NX Development Kit Interfaces and Detail Display

Compatible Platforms & Projects:

  • Official NVIDIA JetPack SDK, CUDA, TensorRT, ROS1/ROS2.

  • LeRobot SO-ARM100/SO-ARM101 robotic arm.

  • All major AI frameworks (PyTorch, TensorFlow, Hugging Face Transformers).

Easy 3-Step Setup:

  • Connect the power supply, monitor, and keyboard/mouse to the kit.

  • Power on — the pre-installed Ubuntu 22.04 system starts automatically.

  • Start developing using our provided example code and comprehensive tutorials. Complete development documentation, ROS example code, and LeRobot project integration guides are provided free of charge.

Full specifications & what's in the box →
