Overview

Heart Rate & SpO2 Sensor Module — High-Precision Detection | Direct Heart Rate & SpO2 Output | Multi-Platform Compatible

Low power consumption design
Built-in integrated algorithm microcontroller
I2C/UART dual communication interface
Companion host software included
Complete development example code provided
PPG photoplethysmography measurement
Equipped with MAX30102 high-precision heart rate & SpO2 chip

Key Features

Heart Rate & SpO2 Sensor Module — High-Precision Detection | Direct Heart Rate & SpO2 Output | Multi-Platform Compatible

Introduction

The Heart Rate & SpO2 Sensor Module integrates Maxim’s MAX30102 heart rate and blood oxygen chip with a built-in algorithm microcontroller, enabling direct output of heart rate and SpO2 values without requiring additional algorithm development. This significantly reduces sensor integration complexity and conserves host MCU resources.

Using PPG (PhotoPlethysmoGraphy) optical measurement, the onboard microcontroller processes raw sensor data to deliver accurate heart rate and SpO2 readings, output via I2C or UART interface. The module includes companion host software for real-time data monitoring and logging via PC, making it ideal for wearables, home health monitoring, long-term physiological tracking, and embedded health projects — an excellent choice for health-oriented embedded development.

Genuine MAX30102 Chip
Built-in Algorithm Microcontroller
PPG Optical Detection
I2C/UART Dual Interface
Host Software Data Monitoring
Multi-Platform Compatible

Product Advantages

01 High-Precision Detection, Stable & Reliable

Equipped with a genuine MAX30102 high-precision heart rate and SpO2 chip and professional physiological parameter detection algorithms, the module delivers stable and reliable readings suitable for various consumer-grade health monitoring scenarios.
02 Built-in Algorithm Microcontroller

The onboard microcontroller processes raw sensor data to compute heart rate and SpO2 values, then outputs results via I2C or UART interface. No complex signal processing or algorithm development is required, dramatically reducing development difficulty and time-to-market.
03 PPG Optical Detection, Non-Invasive Measurement

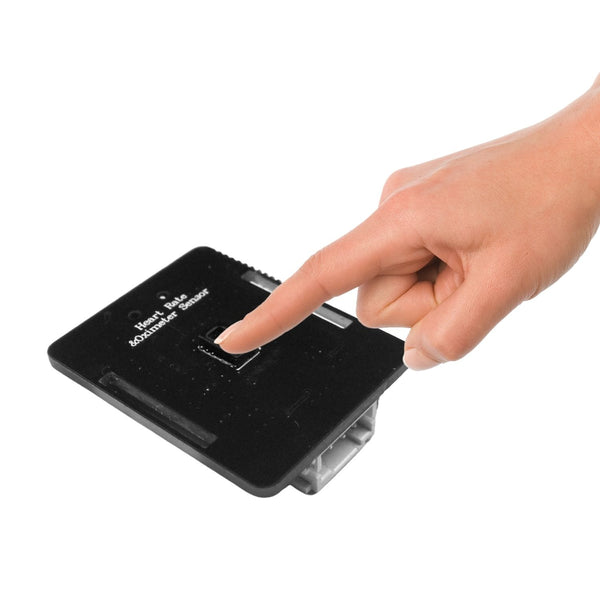

Utilizes PhotoPlethysmoGraphy (PPG) for non-invasive detection — no blood sampling or invasive procedures required. Simply place the fingertip against the sensor detection area and secure with the included strap, making it ideal for long-term continuous monitoring applications.
04 Companion Host Software for Easy Debugging

Dedicated host software is provided — connect the module to your PC via a USB-to-serial adapter to view real-time detection data, enabling convenient debugging and data recording.
05 Dual Communication Interface, Flexible Adaptation

Supports both I2C and UART communication interfaces simultaneously. I2C address is fixed at 0x57, and the serial baud rate defaults to 9600. Select the communication method that best fits your project requirements and hardware resources.

MAX30102 Health Sensor Application Scenarios

Smart Wearable Devices
Sports & Fitness Equipment
Home Health Monitoring
Embedded Education & Lab Experiments

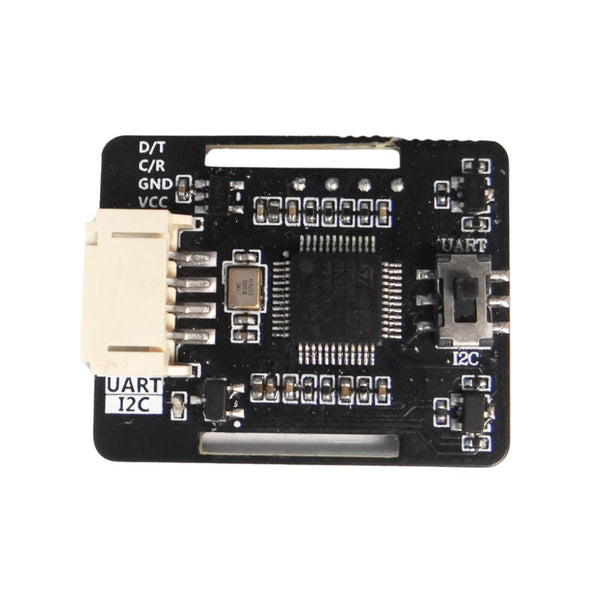

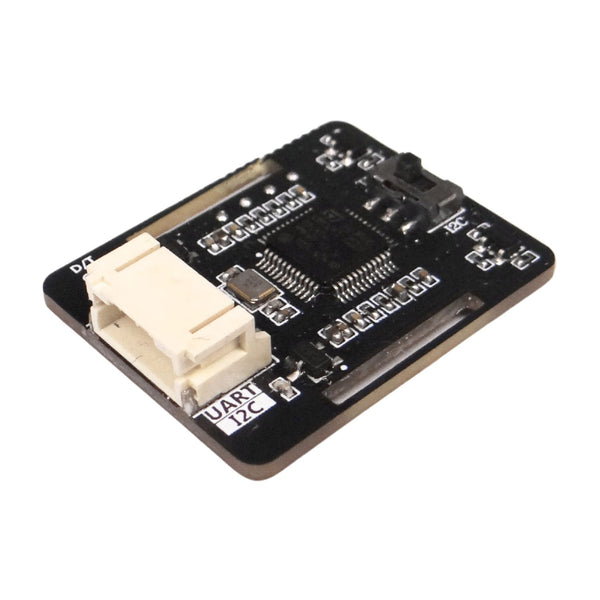

Heart Rate Sensor Hardware Layout

Heart Rate & SpO2 Sensor Specifications

Chip Model	MAX30102 (Maxim)
Supply Voltage	DC 3.3V–5V
Operating Current	<15mA
Communication Interface	I2C, UART Serial
I2C Address	0x57
Serial Baud Rate	Default 9600
Operating Temperature Range	-40°C ~ 85°C
Product Dimensions	25.5mm × 32mm
Detection Method	PPG (PhotoPlethysmoGraphy)
Output Parameters	Heart Rate Value, SpO2 (Blood Oxygen Saturation) Value

MAX30102 Heart Rate Sensor Part List

1 — Gravity: MAX30102 Heart Rate & SpO2 Sensor V2.0	1 pc (Main Module)
2 — Gravity-4P I2C/UART Sensor Cable	1 pc (For Communication Connection)
3 — Fixing Strap	1 pc (For Securing Finger to Sensor)
