2-DOF Servo Pan-Tilt Unit

2-DOF Servo Pan-Tilt Unit

Product Overview

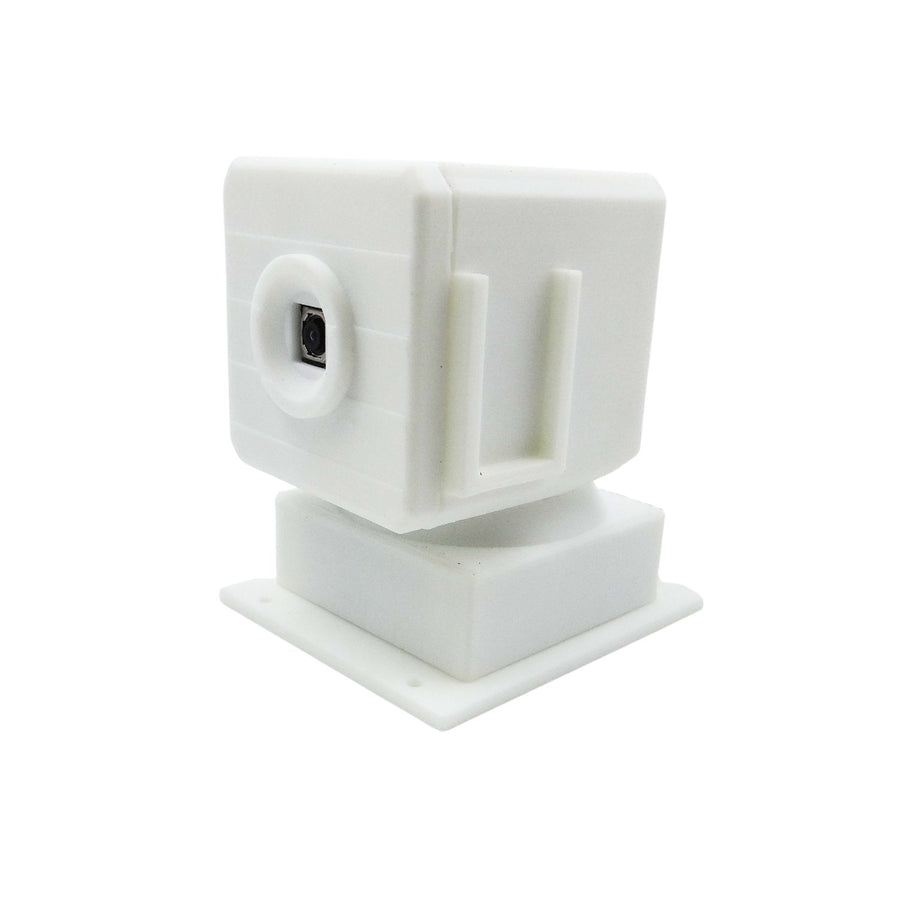

This 2-DOF servo pan-tilt unit is equipped with high-precision SCS0009 serial bus servos, supporting up to 180° single-axis rotation with 180° horizontal and 90° vertical dual-axis electric movement, delivering accurate positioning and smooth operation. It features multiple built-in protections including stall, over-temperature, and voltage protection, paired with a TVS voltage-regulated servo driver board for safe and reliable operation.

The unit comes standard with a 2-megapixel HD USB plug-and-play camera, with optional 1080P@30FPS zoom and 1080P@60FPS fixed-focus camera modules available, providing clear and stable imaging with support for face, color, and QR code visual recognition and real-time tracking.

The entire unit features an enclosed hidden wiring design that is compact and clean, compatible with mainstream controllers such as Raspberry Pi and Jetson. Its lightweight and compact structure makes it adaptable to smart cars, robotic arms, drones, dexterous hands, and other devices, significantly reducing the difficulty of robotic vision project development.

Key Advantages

• 2-Megapixel HD Camera

  Standard 1080P HD USB camera with plug-and-play functionality, optional 30FPS zoom module with 86° wide-angle distortion-free lens, or 60FPS fixed-focus module with 100° ultra-wide-angle lens for high-speed motion capture, delivering clear and stable imaging quality.

• 2-DOF Electric 180° Rotation

  Supports 180° horizontal and 90° vertical dual-axis electric rotation, enabling comprehensive visual coverage with smooth and responsive motion.

• High-Precision Serial Bus Servo

  Equipped with FEETECH SCS0009 serial bus servos featuring 2.5kg.cm stall torque, 0.293° precision, 300° controllable range, and real-time feedback of temperature, speed, voltage, and position parameters.

• AI Intelligent Visual Recognition

  Supports face recognition tracking, color recognition tracking, QR code recognition, and keyboard control, making it ideal for AI vision development and robotics education projects.

• Stall Power-Off Protection

  Comprehensive safety mechanisms including voltage protection, stall protection, and over-temperature protection ensure reliable long-term operation.

• Multi-Controller Compatibility

  Compatible with Raspberry Pi, Jetson series, RDK series, and other mainstream controllers, supporting a wide range of robotic vision application scenarios.

• Enclosed Hidden Wiring Design

  Compact and tidy enclosed housing protects internal wiring from damage while providing a professional appearance suitable for various installation environments.

Core Components

• SCS0009 Serial Bus Servo (x2): High-precision servo with position feedback, supports both angle control servo mode and continuous rotation wheel mode
• 2-Megapixel HD Camera: USB plug-and-play, available in zoom 30FPS (86° wide-angle, distortion-free) and fixed-focus 60FPS (100° ultra-wide-angle) configurations
• Servo Driver Board: TVS surge protection, DC5521 power input (7~12V), USB Type-C communication, PH2.0 bus servo interface

Compatible Platforms

• Raspberry Pi series
• NVIDIA Jetson series
• RDK series
• Other Linux/Windows/macOS main controllers

Application Scenarios

• Drones
• Desktop robots
• Spider robots
• Smart cars
• Robotic arms
• Dexterous hands
